Differential Transmitter in Stratix V Devices

SV51007

2014.01.10

Differential Transmitter in Stratix V Devices

The Stratix V transmitter contains dedicated circuitry to support high-speed differential signaling. The

differential transmitter buffers support the following features:

? LVDS signaling that can drive out LVDS, mini-LVDS, and RSDS signals

? Programmable V OD and programmable pre-emphasis

Transmitter Blocks

The dedicated circuitry consists of a true differential buffer, a serializer, and fractional PLLs that you can

share between the transmitter and receiver. The serializer takes up to 10 bits wide parallel data from the

FPGA fabric, clocks it into the load registers, and serializes it using shift registers that are clocked by the

fractional PLL before sending the data to the differential buffer. The MSB of the parallel data is transmitted

first.

Note: To drive the LVDS channels, you must use the PLLs in integer PLL mode.

The following figure shows a block diagram of the transmitter. In SDR and DDR modes, the data width is

1 and 2 bits, respectively.

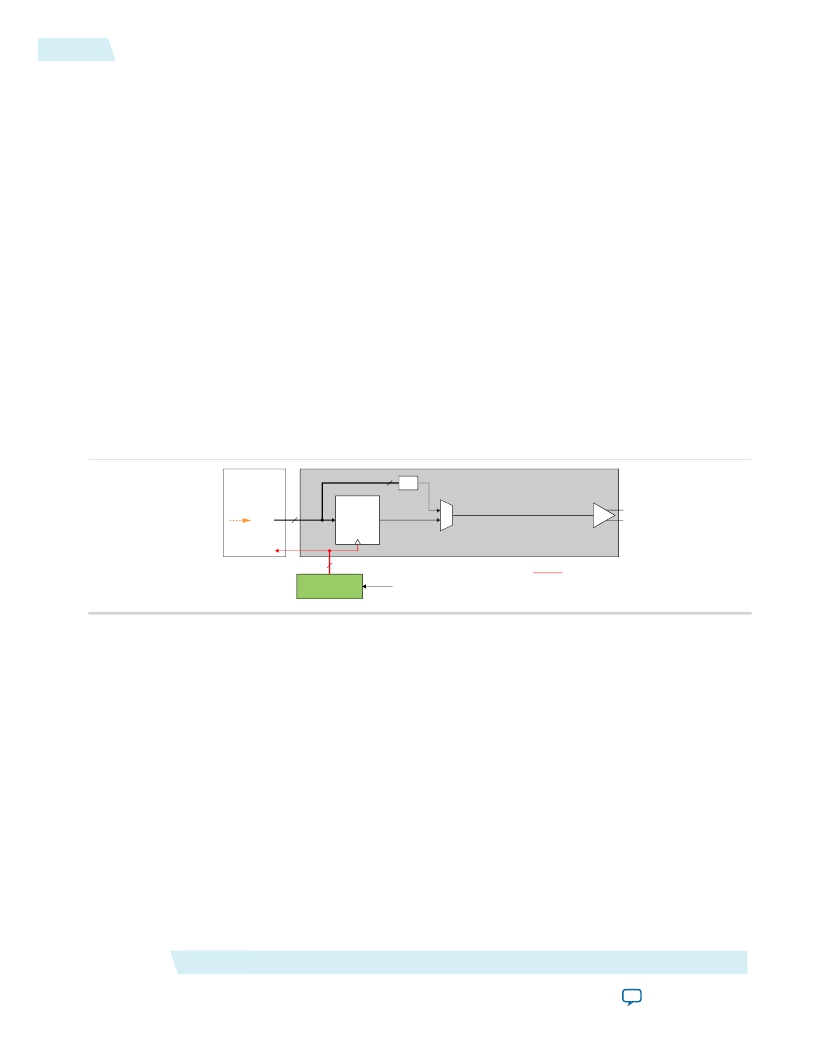

Figure 6-14: LVDS Transmitter

FPGA

Fabric

Serializer

2

IOE

IOE supports SDR, DDR, or non-registered datapath

10 bits

maximum

tx_in

10

DIN DOUT

+

–

tx_out

data width

tx_coreclock

LVDS Transmitter

3

(LVDS_LOAD_EN, diffioclk, tx_coreclock)

LVDS Clock Domain

Fractional PLL

tx_inclock

Related Information

Guideline: Use PLLs in Integer PLL Mode for LVDS on page 6-8

Transmitter Clocking

The fractional PLL generates the load enable ( LVDS_LOAD_EN ) signal and the diffioclk signal (the clock

running at serial data rate) that clocks the load and shift registers. You can statically set the serialization

factor to x3, x4, x5, x6, x7, x8, x9, or x10 using the Quartus II software. The load enable signal is derived

from the serialization factor setting.

You can configure any Stratix V transmitter data channel to generate a source-synchronous transmitter

clock output. This flexibility allows the placement of the output clock near the data outputs to simplify board

layout and reduce clock-to-data skew.

Different applications often require specific clock-to-data alignments or specific data-rate-to-clock-rate

factors. You can specify these settings statically in the Quartus II MegaWizard Plug-In Manager:

? The transmitter can output a clock signal at the same rate as the data — with a maximum output clock

frequency that each speed grade of the device supports.

Altera Corporation

High-Speed Differential I/O Interfaces and DPA in Stratix V Devices

Send Feedback
